Re: Let's see your finished DIY projects!

Post by behndy »

woof. can not WAIT to see how mine's turns out. gimme gimme gimme gimme.

so much nice loot up in har.
Eric! wrote:YOU'RE like having two pedals in one
with your...momentary fuck switch and all..
theactionindex wrote:QUADRACOCK BEHNDERFUCK
music, videos, in progress - http://www.youtube.com/c/behndy

okay, Plan B - PANICImage
Top
User avatar
Chankgeez
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 42254
Joined: Tue Oct 11, 2011 1:40 am
Location: https://www.youtube.com/watch?v=FGhbeHujNZQ youtube.com/watch?v=V-2l7kkBURc

Re: Let's see your finished DIY projects!

Post by Chankgeez »

John Lyons wrote:
Chankgeez wrote:Please, tell me that's not John's version of an SRS EQ Exciter.

Yes sir, made some smaller changes to get it working better.


Damn you, John Lyons.
psychic vampire. wrote:The important take away from this thread: Taoism and Ring Modulators go together?
…...........................…
Sweet dealin's: here
"Now, of course, Strega is not a Minimoog… and I am not Sun Ra" - dude from MAKENOISE
#GreenRinger
Top
User avatar
greeny23
experienced
experienced
Posts: 612
Joined: Wed Feb 23, 2011 5:28 pm
Location: Sydney, Australia

Re: Let's see your finished DIY projects!

Post by greeny23 »

took some pics for ebay. anyone else built a bluesbreaker before? not much volume.
Top
User avatar
John Lyons
committed
committed
Posts: 290
Joined: Fri Oct 22, 2010 12:32 am

Re: Let's see your finished DIY projects!

Post by John Lyons »

The Future is now!


Top
User avatar
Fuzz_Pi
FAMOUS
FAMOUS
Posts: 1545
Joined: Sun Dec 19, 2010 11:28 pm
Location: Brooklyn, NY

Re: Let's see your finished DIY projects!

Post by Fuzz_Pi »

^Whats this now?
Top
User avatar
greeny23
experienced
experienced
Posts: 612
Joined: Wed Feb 23, 2011 5:28 pm
Location: Sydney, Australia

Re: Let's see your finished DIY projects!

Post by greeny23 »

tonebender with a tonestack.
Top
User avatar
John Lyons
committed
committed
Posts: 290
Joined: Fri Oct 22, 2010 12:32 am

Re: Let's see your finished DIY projects!

Post by John Lyons »

greeny23 wrote:tonebender with a tonestack.


No, not at all really. It's a tweaked Colorsound Overdriver.
Yeah, the is some fuzz face architecture in there but.... Not
enough tonebender to say so.
Top
User avatar
peps1
committed
committed
Posts: 111
Joined: Sat Nov 20, 2010 1:24 am
Location: UK
Contact:
Contact peps1

Re: Let's see your finished DIY projects!

Post by peps1 »

Stunning build as always John!
Top
User avatar
greeny23
experienced
experienced
Posts: 612
Joined: Wed Feb 23, 2011 5:28 pm
Location: Sydney, Australia

Re: Let's see your finished DIY projects!

Post by greeny23 »

John Lyons wrote:
greeny23 wrote:tonebender with a tonestack.


No, not at all really. It's a tweaked Colorsound Overdriver.
Yeah, the is some fuzz face architecture in there but.... Not
enough tonebender to say so.


just a stab in the dark haha.

i saw 3 transistors..
Top
User avatar
Jwar
Cosmic of BILF
Cosmic of BILF
Posts: 18239
Joined: Thu Dec 02, 2010 7:18 pm
Location: The edge of existence

Re: Let's see your finished DIY projects!

Post by Jwar »

Here's an etch I recently did for my cousin. I'm putting a super fuzz in in here. This means I'll be hopefully doing more etching again, since I'm back in town (Aen if you read this, that means yours buddy!). Anyway, I hate Trump but my cousin digs the shit out of him. Whatever. It's for him, not me. So I don't care. Anyway, I'm fairly happy with how it turned out. I think I need to let the paint dry a little longer before sanding though. I haven't quite perfected things yet, but I'm getting better at it. I think this has kind of a vintage look to it.





"I do not have the ability to think rationally 90% of the time and I also change my mind at the drop of a hat".

-JWAR :)
Top
User avatar
behndy
Supporter
Supporter
Posts: 19883
Joined: Tue Sep 15, 2009 3:06 am
Location: Cali. East Bay Yo.
Contact:
Contact behndy

Re: Let's see your finished DIY projects!

Post by behndy »

hah! NICE.
Eric! wrote:YOU'RE like having two pedals in one
with your...momentary fuck switch and all..
theactionindex wrote:QUADRACOCK BEHNDERFUCK
music, videos, in progress - http://www.youtube.com/c/behndy

okay, Plan B - PANICImage
Top
Officer Bukowski
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3307
Joined: Wed Nov 17, 2010 9:13 pm

Re: Let's see your finished DIY projects!

Post by Officer Bukowski »

Violet Rams Head spec Muff
I make pedals. SHARK TANK
Top
User avatar
The4455
IAMILF
IAMILF
Posts: 2441
Joined: Thu Oct 28, 2010 10:54 pm
Location: Chicago, Ill

Re: Let's see your finished DIY projects!

Post by The4455 »

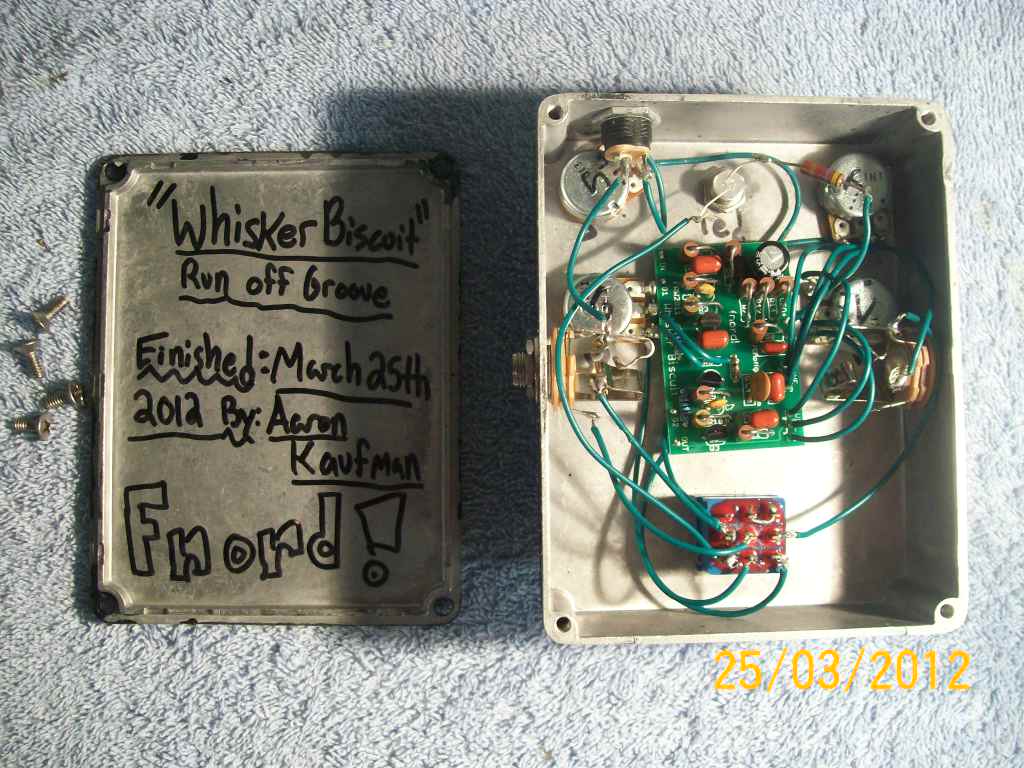

Just finished this yesterday, it's my second build, so ya know.
The controls are:
Top Right: Starve
Top Left: Tone
Bottom Right: Gain
Bottom Left: Volume
Attachments
"The future is the past not yet written!"
Top
User avatar
multi_s
IAMILF
IAMILF
Posts: 2098
Joined: Mon Feb 15, 2010 9:00 pm

Re: Let's see your finished DIY projects!

Post by multi_s »

$$$
@jwar
more like you're hired (:
$$$
Top
User avatar
hazefuzz
committed
committed
Posts: 122
Joined: Sun Sep 19, 2010 10:12 pm
Location: QC

Re: Let's see your finished DIY projects!

Post by hazefuzz »

Image[/quote]

Why you didnt wired a mid pot?
and from where come this PCB?

thanks, nice muff
