Re: Let's see your finished DIY projects!

PostPosted: Fri Jan 14, 2022 3:18 pm
by cosmicevan
SO HAWT

Re: Let's see your finished DIY projects!

PostPosted: Sat Feb 05, 2022 6:56 pm
by imJonWain
"finished" my reworked Epiphone Electar Tube 10 by finally getting a control plate made. Making it open back was a bit of a hackjob but I think I am going to leave it, add character lol. It's single 12ax7 preamp into a SE KT88 output section. I really like the kinda raw trashy distortion of such a simple preamp.






Re: Let's see your finished DIY projects!

PostPosted: Sat Feb 12, 2022 6:20 am
by gila_crisis

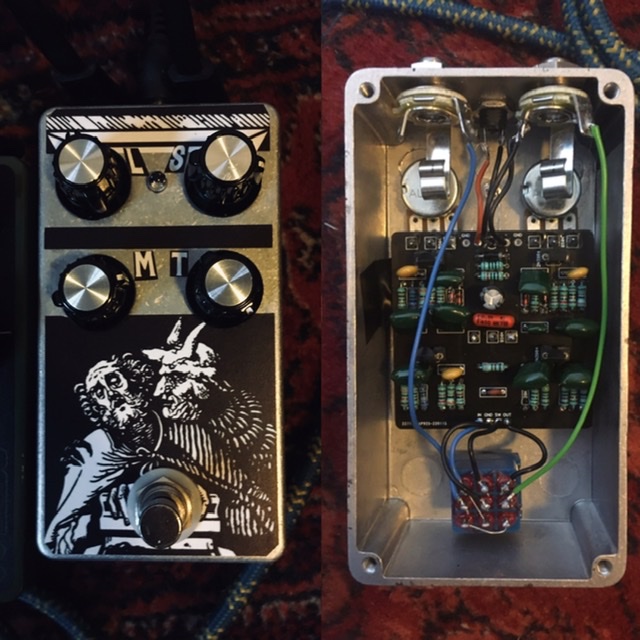

After a long time, it was about time to undust a bit my soldering skills. And here I am with this sweet LAL 88 Oscillo-Fuzz clone!

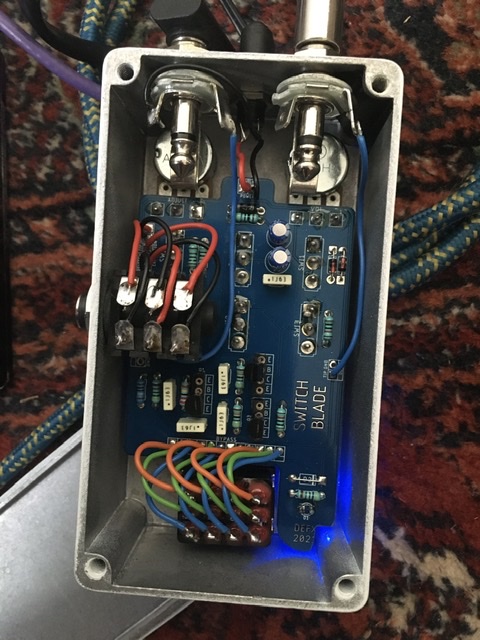

PCB by Dead End FX, the Switchblade project (big kudos guys!).

I also noticed I have laying around 2 pcbs by Fuzzdog for the Shin-Ei CompanionFuzz and a Univox Square Wave... what will happen if I put these together in the same enclosure in series?!???? :!!!:




Re: Let's see your finished DIY projects!

PostPosted: Mon Feb 14, 2022 11:33 pm
by LaoWiz
So much awesome stuff on these last few pages. I am going to have to try one of those LAL 88 Oscillo-Fuzz boards. When I was first getting into effects that was one I really wanted to buy but went with a DBA fuzz war instead and then got into DIY.

Here's one I finished up this weekend. Since I learned Eagle and figured out how to get boards made at fab houses I haven't etched a PCB in ages. Having a Zonk Machine on breadboard and finally getting it to sound amazing I wanted to get it in a pedal fast so whipped up a board in Eagle for etching last week. The first one came out with the right orientation but with the tracks face side up so I had to do it again. I also didn't have enough clearance between the tracks and the ground plane so fixed that in Eagle and went at it again. Board came out right but still the clearance to the ground plane was pretty close so took a blade and carved around the tracks just in case. Built up the board using lots of mojo parts that I have in my collection from estate sale digs. Didn't fire up and the voltages were off so had to debug. I double checked my schematic to the Zonk machine one I pulled off the web, all good. Checked continuity on all of the parts on the board and everything was connected just right. I was suspicious of a couple of the caps and replaced those. No dice and then busted out my readers that are 3X or so and inspected all of the traces and pads. Found one super super tiny spec of copper that was causing a short to one of the resistors to ground and took the blade to it. Bingo! Fuzz city. Or at least that what I thought. Got it working but it was later in the night and couldn't really crank it too loud. The next day I got to full volume and I just didn't sound as good as the breadboard version which I used to find the best transistor combo. I had made a last minute switcharoo in my transistor configuration and put an OC44 in Q2 and it sounded great on the breadboard but maybe I wasn't playing loud enough that night. Put back in the transistors I was playing for a week that sounded amazing (but a little noise) and it sounds incredible. After over 10 years of DIY I only tried the Zonk a couple of years ago but the board failed and it really didn't sound too impressive but luckily I have a crap load of various GE trannies in my stash and was able to revisit this circuit and it's really quite amazing but was tough to get the right transistor combo. I probably spent 2-3 hours swapping out transistors on the breadboard. Got lots of great sounding variations in fuzz but what I settled on really knocked it out of the park. What a great sounding fuzz. Highly recommended for those who like germanium fuzzes. I have only built a handful of those old circuits - MKII, MKIII, Dizzytone, Buzzaround - love them all but the Zonk seems to have something a little extra special. I have a rotary switch for the input caps and think the second position basically makes it a MKI but I prefer the sizzling 1000pf input cap on the Zonk. Not too bright for me.





Re: Let's see your finished DIY projects!

PostPosted: Tue Feb 15, 2022 9:22 am
by Dandolin
Luvvit :joy: nice addition to throw the input caps on a rotary :thumb:

Re: Let's see your finished DIY projects!

PostPosted: Tue Feb 15, 2022 9:42 am
by Chankgeez
:)*

Re: Let's see your finished DIY projects!

PostPosted: Wed Feb 16, 2022 2:36 pm
by LaoWiz
Dandolin wrote:Luvvit :joy: nice addition to throw the input caps on a rotary :thumb:


I likely will only use the Zonk machine input cap as I tend to like things more on the bright end but not bad to go a little thicker from time to time :joy:

Re: Let's see your finished DIY projects!

PostPosted: Wed Feb 16, 2022 11:16 pm
by LaoWiz
Chankgeez wrote::)*


:hug:

Re: Let's see your finished DIY projects!

PostPosted: Sat Feb 19, 2022 6:18 am
by gila_crisis
Next: this is a Hizumitas clone!
I built it with the shika fuzz pcb by pedalPCB.
I was very curious about this muff variant, and when I saw the pcb I decided to give it a try.
I installed also a mid knob on the tone section, to have a bit more versatility.
It sounds very cool indeed, it's thick and slugdy as a good muff should be and there's a lot of clarity also with the tone knob fully on the bass side.
I also did an AB comparison with my mighty Earthbound Supercollider and.... the SC can be set to sound like the Hizumitas!
There are some different nuances, but they are so close that I think in a live context you won't notice which is which!
There is only one main thing that's amazing about Hizumitas: it has tooooooons of output volume!!!
Unity is already around 9 o'clock, while on the SC it's around 2 o'clock.


Re: Let's see your finished DIY projects!

PostPosted: Sat Feb 19, 2022 7:02 pm
by digi2t
Decided to build another Dumble, so pedal builds have been slim of late. Did manage to get these two built today while I wait for parts for the amp...

Gnawty. Copy of the Big Tone Brewery Royal Beaver. 'Cuz we all know, too much Muff is never enough. This one goes to 11.



Dekadent. Preamp section of the Peavey Decade mini amp. Apparently, it's a "thing" now.



Re: Let's see your finished DIY projects!

PostPosted: Sat Feb 19, 2022 7:32 pm
by imJonWain
How are you liking the Dumble build you did? Are they worth the hype?

Re: Let's see your finished DIY projects!

PostPosted: Sat Feb 19, 2022 10:46 pm
by digi2t
imJonWain wrote:How are you liking the Dumble build you did? Are they worth the hype?


Loving it. Built a #183 last winter, and I'm putting together a #124 to compliment it. The things to keep in mind however;

- They tend to be tailor made to a specific tonal taste.
- As such, they are not "swiss army knife" amps.

They do one thing, but they do it better than most, if not all. I still remember the first time I plugged into my 183 and ran it through it's paces, my ears just went "WOW!". The tonal quality, and harmonic content are just off the charts. And this coming from a guy that's never been a big EL34 fan. A lesson I learned from my Traynor YBA-3, I'm running 6CA7's in it, which I find to sound rounder and sweeter, especially in the low end.

For the 124, I'll be using 7581A's, which are my go to for all my 6L6 amps. There are some subtle differences in the preamp section, so I'll be looking forward to hearing the result. The 183 I equipped with Hammond iron, while the 124 will be pumping Edcor iron. This is the first time I'm using Edcor, so another thing I'll be listening out for.

Re: Let's see your finished DIY projects!

PostPosted: Sun Feb 27, 2022 4:12 am
by gila_crisis

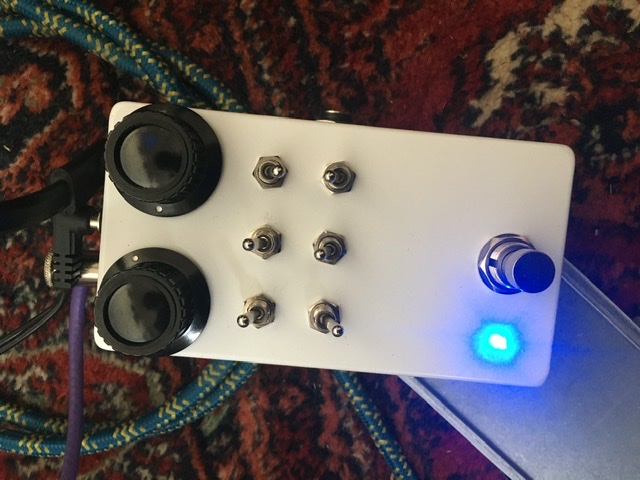

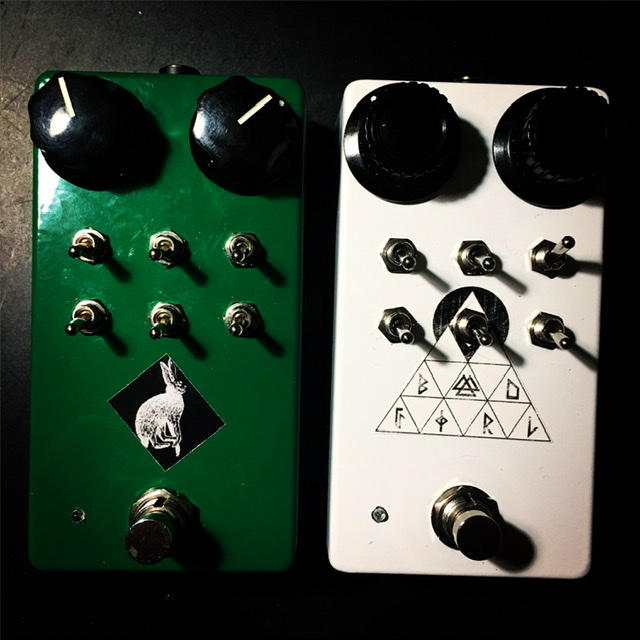

Built a second 88 super oscillo fuzz for a friend.

Re: Let's see your finished DIY projects!

PostPosted: Sun Feb 27, 2022 10:34 am
by Dandolin
:love: beautiful

Re: Let's see your finished DIY projects!

PostPosted: Wed Mar 02, 2022 7:44 pm
by mcatano
Just boxed up this circuit I've been tinkering with for the past couple of weeks on breadboard. Turned out pretty cool, but have to sort out some switch popping...


A sick ms paint block diagram is worth a thousand words...


Because of all the switches and wiring in and out, I figured it would be easier to break everything down into discrete circuit fragments than to try and do one huge vero layout for the whole thing.


The voice switch selects between 3 different resistors to ground in a big muff tone control which gives 3 pretty different EQ plots:
