The "How many different PLL clones can we get!" Thread

[12XU2A3X3]

i may have something to contribute to this thread shortly.

AWE DIP

[Chankgeez]

PLLone WARS

[smallsnd/bigsnd]

PLLone WARS

i've always been a lover, not a fighter.

[12XU2A3X3]

PLLone WARS

i've always been a lover, not a fighter.

i mean, you named a pedal "fuck" so, it follows...

[Chankgeez]

PLLone WARS

i've always been a lover, not a fighter.

OK, then I'll use the ss/bs PLLone to make the harp sounds when I cover this song:

[youtube]http://www.youtube.com/watch?v=cbRi-_IB-4s[/youtube]

[dubkitty]

i think i'm really going to like the Let A Thousand Flowers Bloom phase of this story.

[Jwar]

If Brian's making one, I'd be willing to take a stab at it! Still not digging the sound of those clips though. Maybe it's just not my thing?

[intothegroove]

Well I figured why not post now or forever hold my piece , been watching this thread for a very very long time. I have been hard at building and learning and I think I'm gonna give a try at pedals, I love them so much! and the PLL is by far the greatest I have ever had

First off I have to give all credit for the design and engineering of this circuit to my good friend Kevin of KO Amps, he makes incredible stuff you gotta check him out here: http://koamps.weebly.com/
We have been sitting on this for awhile way before anything was posted here so there is no circuit ripoff of any schematic that was posted in this thread, the fuzz section of the PLL V.2 on a fucken 9V! still gotta get my labeling on it but this is gonna be the style of my future pedals.

I also recorded sound samples of an original PLL V.2 fuzz version and KO Amps and my version, let me know what you guys think! thanks!

[intothegroove]

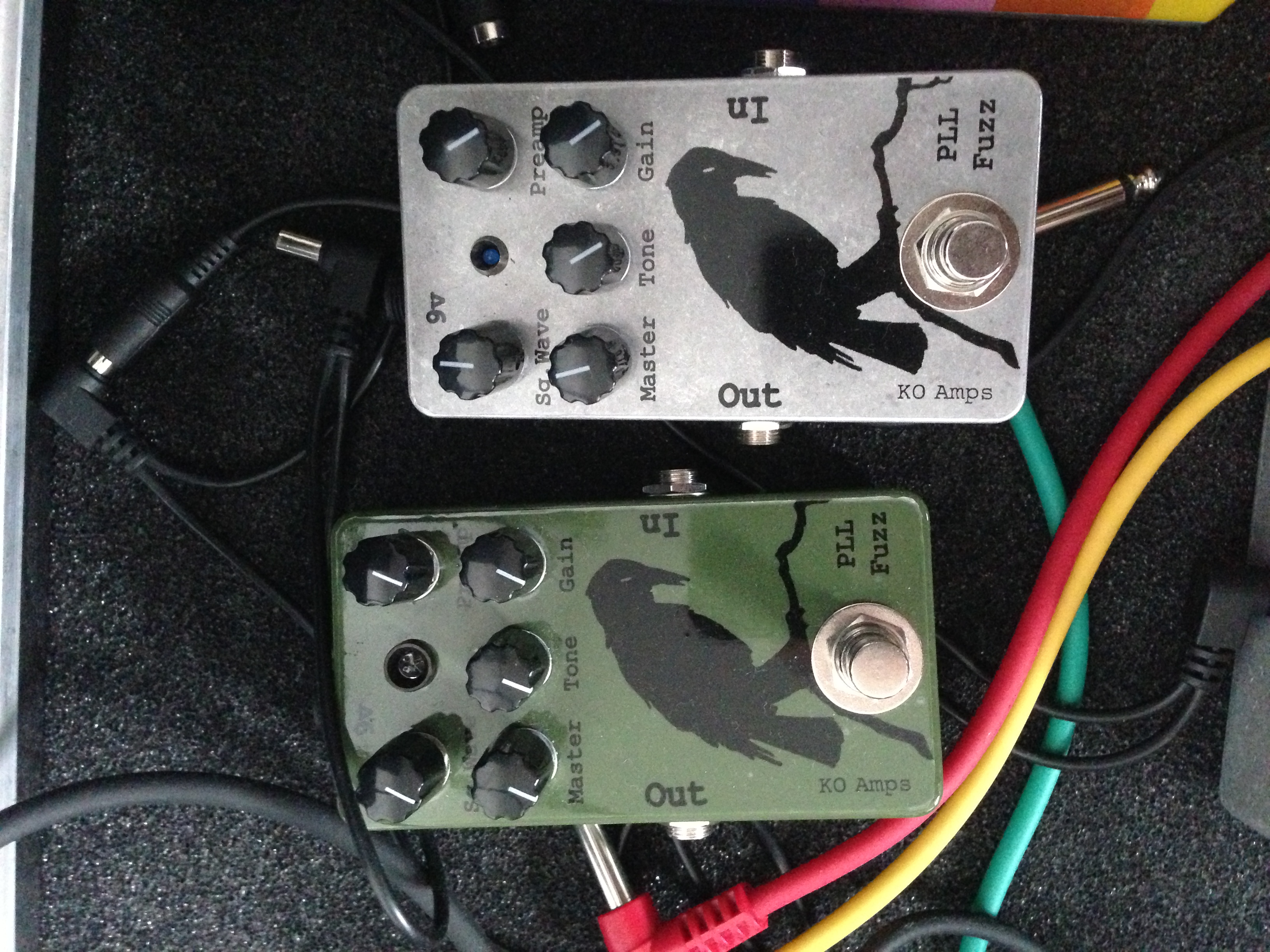

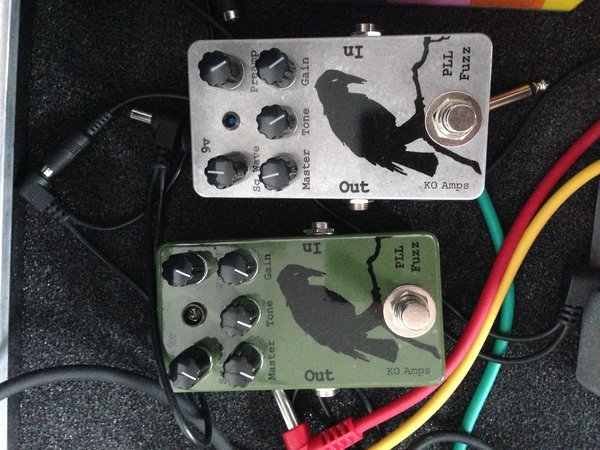

Here are the first couple of proto's that KO Amps made awhile back and if you contact him he's gonna be building them and so will I

[intothegroove]

sorry for the messed up angle I don't know why it turned

[12XU2A3X3]

Wut...awesome.

[intothegroove]

Here are the first couple of proto's that KO Amps made awhile back and if you contact him he's gonna be building them and so will I

that looks dope, the fuzz on its lonesome is great and i'm interested to hear what it sounds like with the added controls. man you should've hit me up before you picked up an exterminator, would've been down for a trade.



was advised to post a gutshot of a valkyrie to prove i'm not using anyones (diji2t?) tracings but my own from a few years ago so here.

Hey thanks so much man, I honestly was thinking of saying something but he was still figuring out the proto's and I was still a little uncomfortable with building it yet. But yea, it is my favourite fuzz ever, the exterminator is still ripping hard BTW and when digi2t posted the schems he also posted a second one with the name Kinda Fuzzy for the trace and that is KO Amps

All is good man, I am so happy that everyone will have so many options at this great piece of legend

[intothegroove]

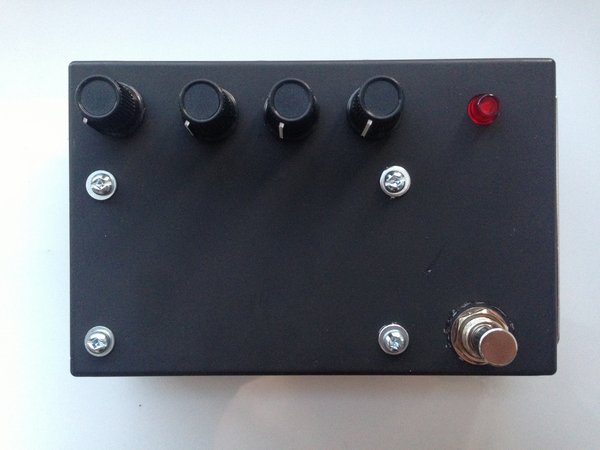

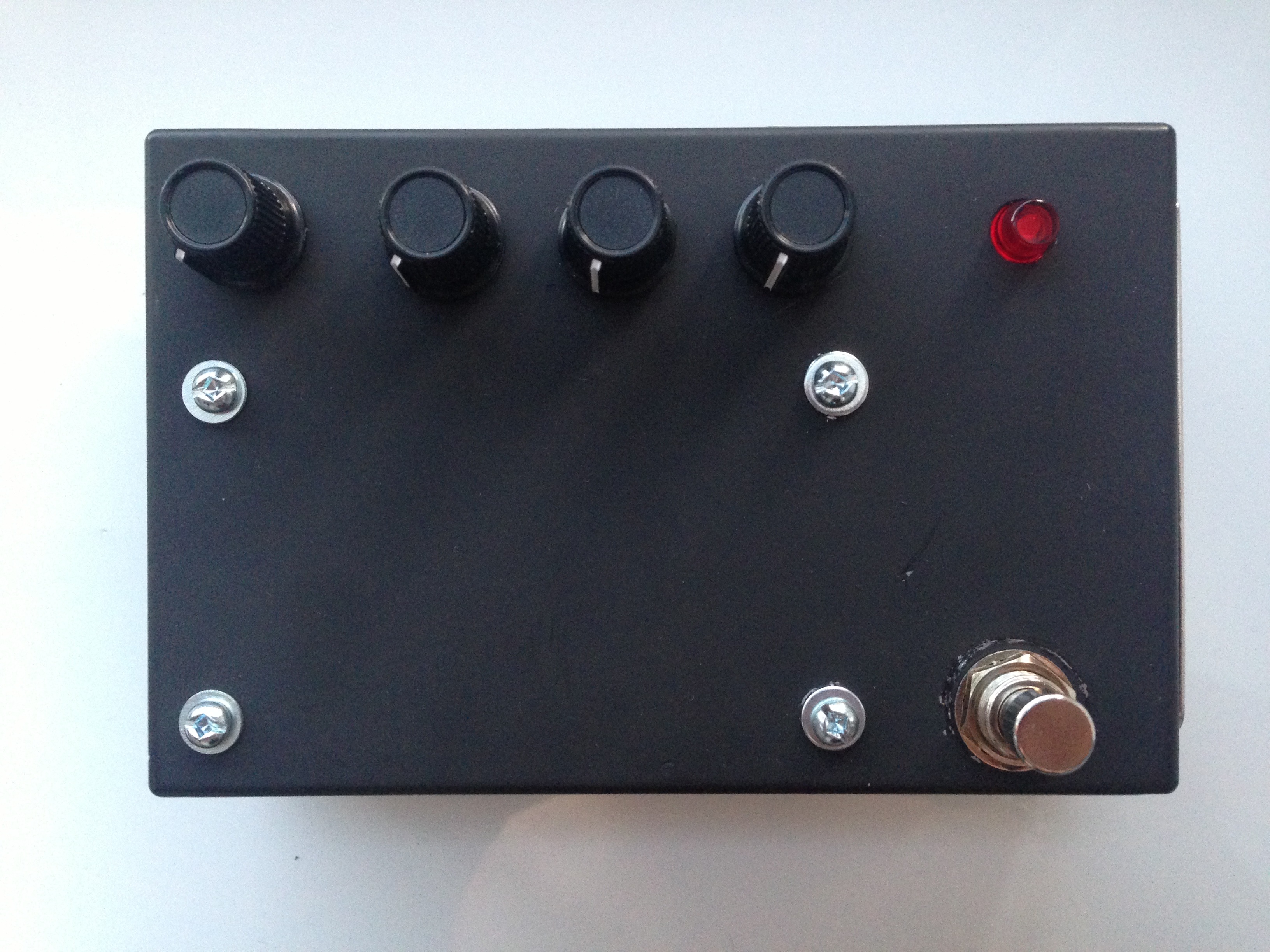

may as well.... this is my original pedal I made, not sure I will be making to many of these but will be limited and I will have a smaller but still similar looking version It's at the bottom of the page: http://ilovefuzz.com/viewtopic.php?f=15 ... start=3525

[digi2t]

was advised to post a gutshot of a valkyrie to prove i'm not using anyones (diji2t?) tracings but my own from a few years ago so here.

There was never any doubt about that, but sharing would have been cooler still. Just my two bits. Giving to Caesar what rightfully belongs to Caesar; very nice clean build. I especially appreciate the wiring.

Speaking of sharing, check out http://www.diystompboxes.com/smfforum/i ... #msg911288 , UKToecutter is finalizing a DIY PCB. I know this guy, and have done business with him before, he's righteous. He had the first run of Ludwig Phase II clone boards made, and I did the distribution. Really nice clean work. If anyone is interested in DIY'ing a PLL, then I suggest you PM him over at the other forum, and reserve ahead of time. It will help him decide how many boards that he'll have made.

[intothegroove]

was advised to post a gutshot of a valkyrie to prove i'm not using anyones (diji2t?) tracings but my own from a few years ago so here.

There was never any doubt about that, but sharing would have been cooler still. Just my two bits. Giving to Caesar what rightfully belongs to Caesar; very nice clean build. I especially appreciate the wiring.

Speaking of sharing, check out http://www.diystompboxes.com/smfforum/i ... #msg911288 , UKToecutter is finalizing a DIY PCB. I know this guy, and have done business with him before, he's righteous. He had the first run of Ludwig Phase II clone boards made, and I did the distribution. Really nice clean work. If anyone is interested in DIY'ing a PLL, then I suggest you PM him over at the other forum, and reserve ahead of time. It will help him decide how many boards that he'll have made.

Right on buddy! sounds great and I will check it out, I am definitely down for some PCB's it will definitely make building that beast a little less of a mission

I can't believe that this is finally happening, this pedal and it's original creator are like the Bermuda triangle
