Let's see your finished DIY projects!

[Chankgeez]

[frodog]

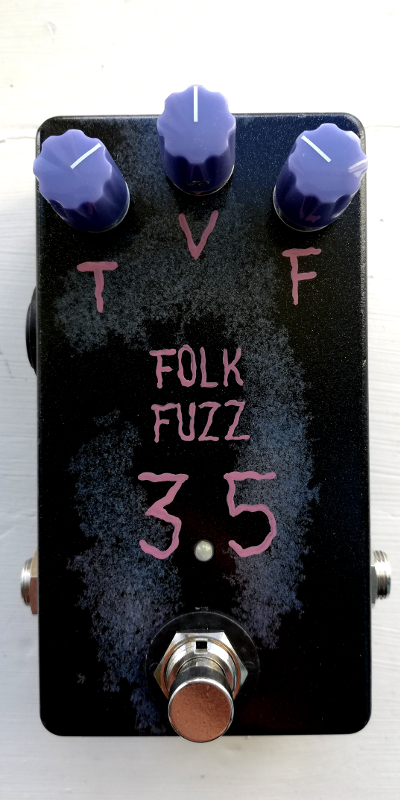

BJFE Folk Fuzz completed. Slightly modified layout to accomodate an existing piece of stripboard, making the fit very tight. Lucky I had some B100k mini pots.

Really dig this one - cleans up enough to be sort of a gritty boost but can also get evil - great for an end-of-chain versatile dirt buddy.

[LILFX]

Two recent boxes on the pedalboard. One is a modded Bazz Fuss and the "signal fixer" is a variant of the AMZ pickup simulator.

https://www.youtube.com/watch?v=dkkP6KqG6rI&t=1s

[Chankgeez]

Two recent boxes on the pedalboard. One is a modded Bazz Fuss and the "signal fixer" is a variant of the AMZ pickup simulator.

[youtube]http://www.youtube.com/watch?v=dkkP6KqG6rI[/youtube]

https://www.youtube.com/watch?v=dkkP6KqG6rI

Certainly sounds good!

[flanagan0718]

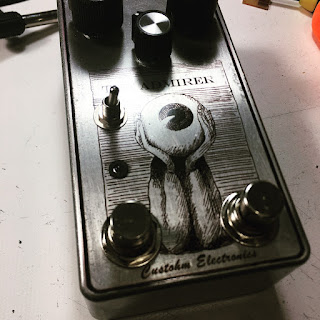

Here are a few of my recent builds.

EQD Hoof Clone




CultureJam's Triton Delay




A Hamlet delay

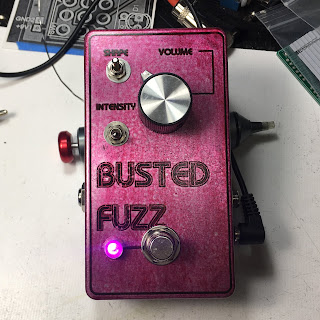

And a few Harmonic Transformer clones I did.

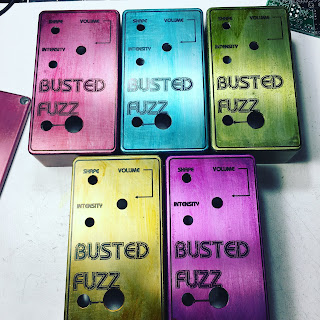

color variants of the transformer


Thanks for looking!!!! feel free to message me about anything!
-Mike-

[fuzzonaut]

^^^ I really dig those busted fuzzes and the graphics of the Hamlet delay ^^^

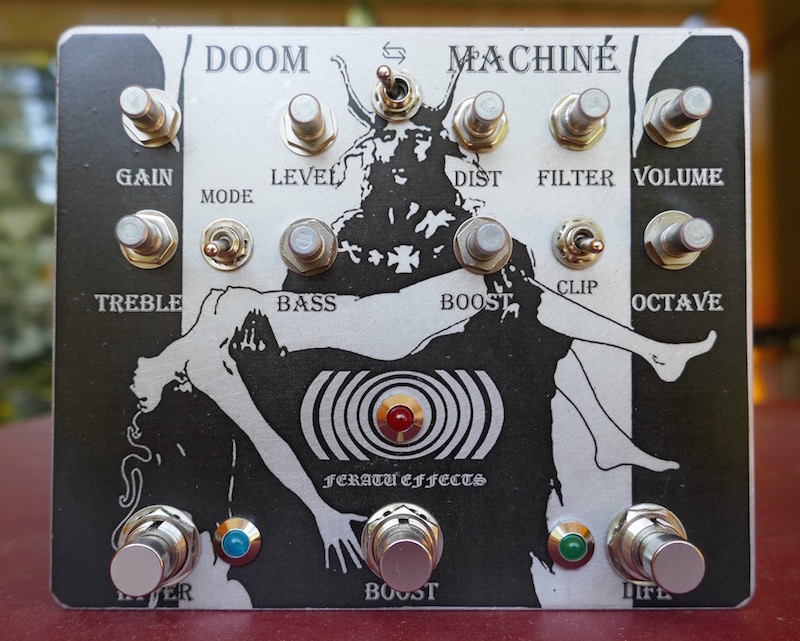

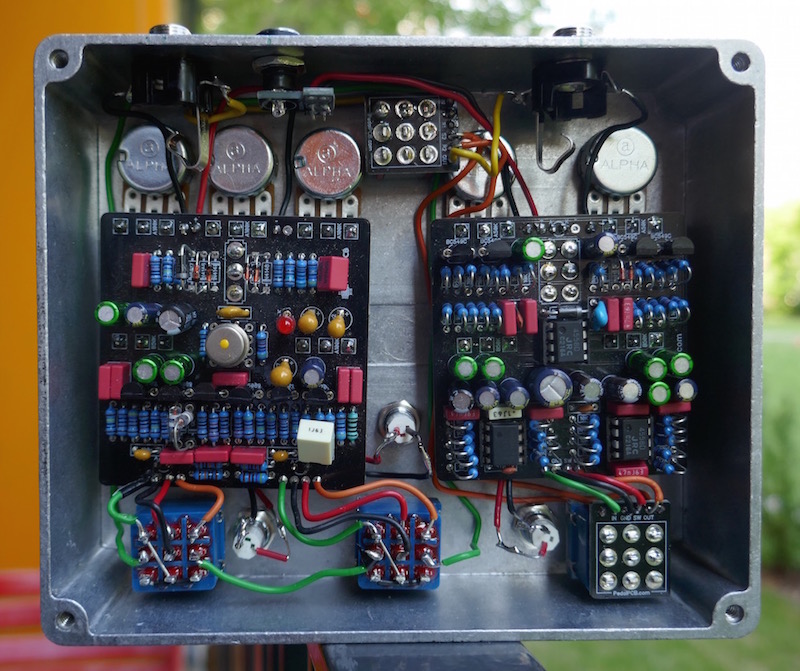

Here's my first 2-in-1 pedal, HyperFuzz FZ-2 & Life Pedal with an order switch, PCBs from pedalpcb, the DOOM MACHINE.

I'm still waiting for them sexy metal knobs I ordered for it, estimated delivery unknown, so here it is, kinda naked.

Oh, and yes, it does doom!

But, does it doom?

D5 on Life got flipped

[Hexjibber]

That Doom Machine is awesome! \m/ Must be a brutal combination!

[mathias]

After 3 years of sitting on my workbench, waiting to be finished, I soldered up the jacks and knobs of my Klone this past weekend. It’s a great pedal; it has a mono gain knob with the second gain/blend set by a trimmer inside, and it has a bass boost switch to thicken it up on guitar or use it as a bass guitar boost/OD.

https://www.instagram.com/p/CA1KgWBHM97/

Sticker decorations by my niece who was really into My Little Pony at the time. Seems appropriate.

[Hexjibber]

Another few projects complete, reverse etched with NaOH/Caustic Soda

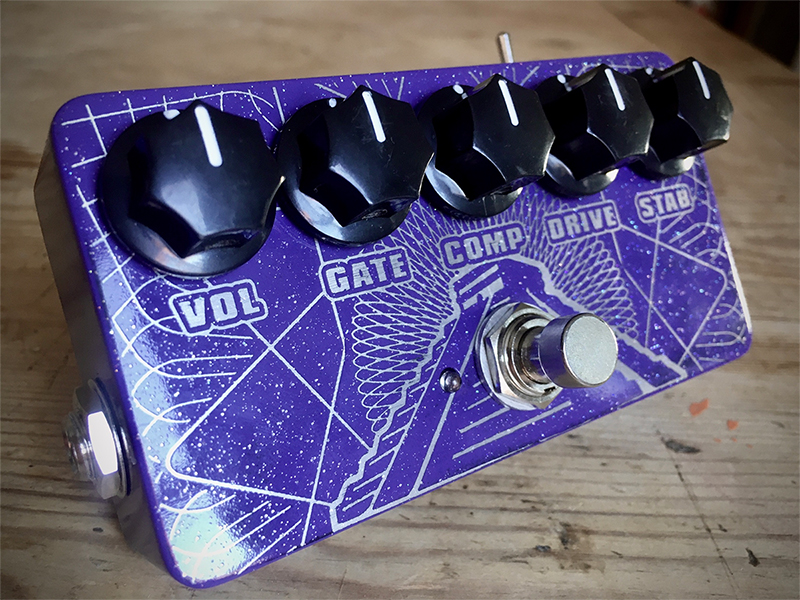

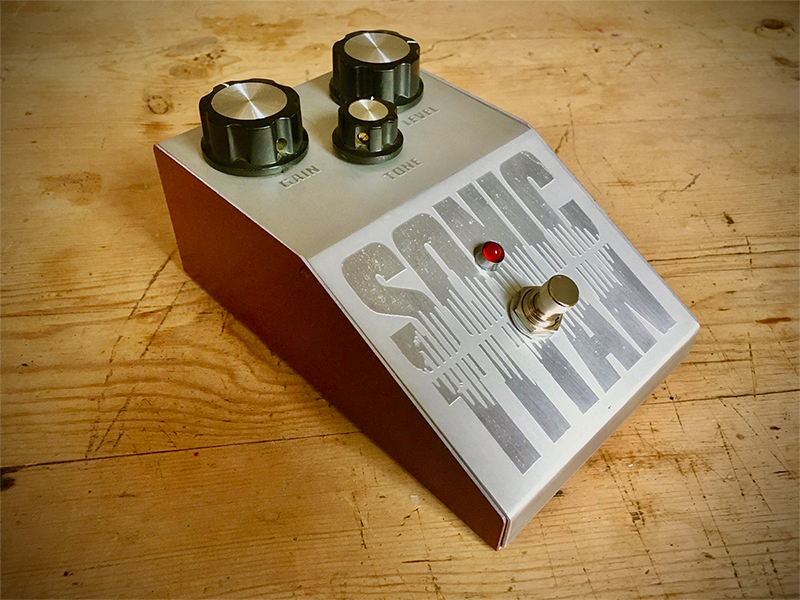

Sonic Titan

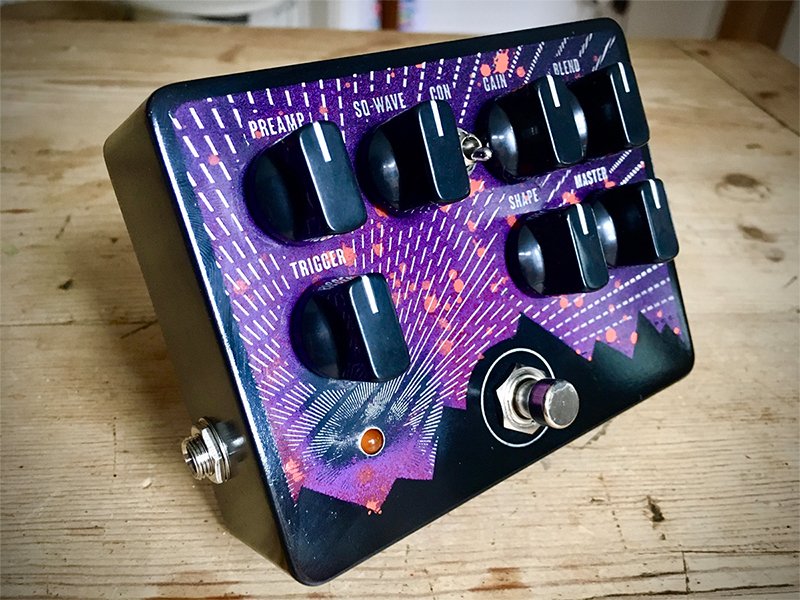

Fuzz Factory

Dead End FX Grimafuzz

[Chankgeez]

Dead End FX Grimafuzz

[mathias]

That Fuxz Factory!

[UglyCasanova]

This whole page is crazy cool. Nice job, peeps!

[MechaGodzilla]

Sonic Titan


fuckin hell, i want to step on that!

[qersty]

Not really finished because I need to paint this but im too excited to share cause its the first pedal ive built since the dark boost in middle school. I cant think of a paintjob and it will probably take ages. Still really proud, it is a boss fet preamp. Next ill build a stripboard rangemaster but I gotta get a charge pump chip for it

[John Matrix]


BYOC Phase 90
