Re: Let's see your finished DIY projects!

Post by yallerhon »

I'm never doing this again..

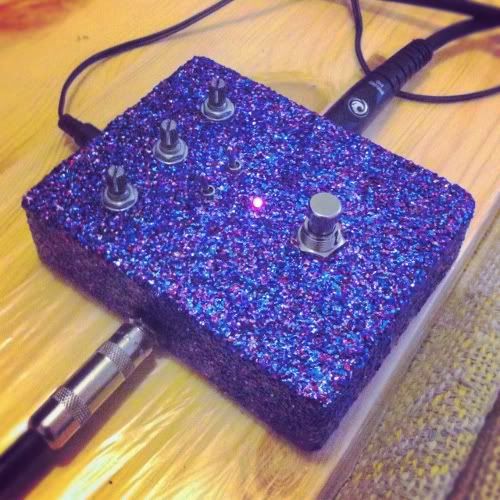

Big Muff Pi w/tone wicker (say what you will about this pedal, I actually really dig the sound).
Stripped, sanded, cleaned, etch-primed, two glued-on coats of goddamn glitter, twenty two coats of clearcoat. Very pleased with the result, it's rock-solid now. :)

Will take some (better, more sparkly :!!!: ) pics when the replacement knobs get here.

Good deals with: PumpkinPieces, maz91379, allicio, nelsinian, tomlane95, casperh7, insubordination, bronzetalon
Top
User avatar
John Lyons
committed
committed
Posts: 290
Joined: Fri Oct 22, 2010 12:32 am

Re: Let's see your finished DIY projects!

Post by John Lyons »

Looks cool, nice work!
Top
User avatar
Bassus Sanguinis
Supporter
Supporter
Posts: 5075
Joined: Mon May 11, 2009 7:32 am
Location: Espoo, Finland
Contact:
Contact Bassus Sanguinis

Re: Let's see your finished DIY projects!

Post by Bassus Sanguinis »

yallerhon wrote:I'm never doing this again..

Big Muff Pi w/tone wicker (say what you will about this pedal, I actually really dig the sound).
Stripped, sanded, cleaned, etch-primed, two glued-on coats of goddamn glitter, twenty two coats of clearcoat. Very pleased with the result, it's rock-solid now. :)

Will take some (better, more sparkly :!!!: ) pics when the replacement knobs get here.



wow... twenty two? :whoa:

...but it sure looks really nice, the end result is Sparkleeeeeeeee.
:::: Metal up Yöur Jazz! with FUZZIFERblack psychedelic doom ::::
Ugly Nora wrote:It's a sad day when Bassus Sanguinis becomes the voice of reason. :lol:
Top
User avatar
Chugs
interested
interested
Posts: 31
Joined: Sun Mar 11, 2012 12:45 pm

Re: Let's see your finished DIY projects!

Post by Chugs »

Will the knobs be sparkly too?
Top
justin
committed
committed
Posts: 110
Joined: Sat Oct 01, 2011 8:02 pm

Re: Let's see your finished DIY projects!

Post by justin »

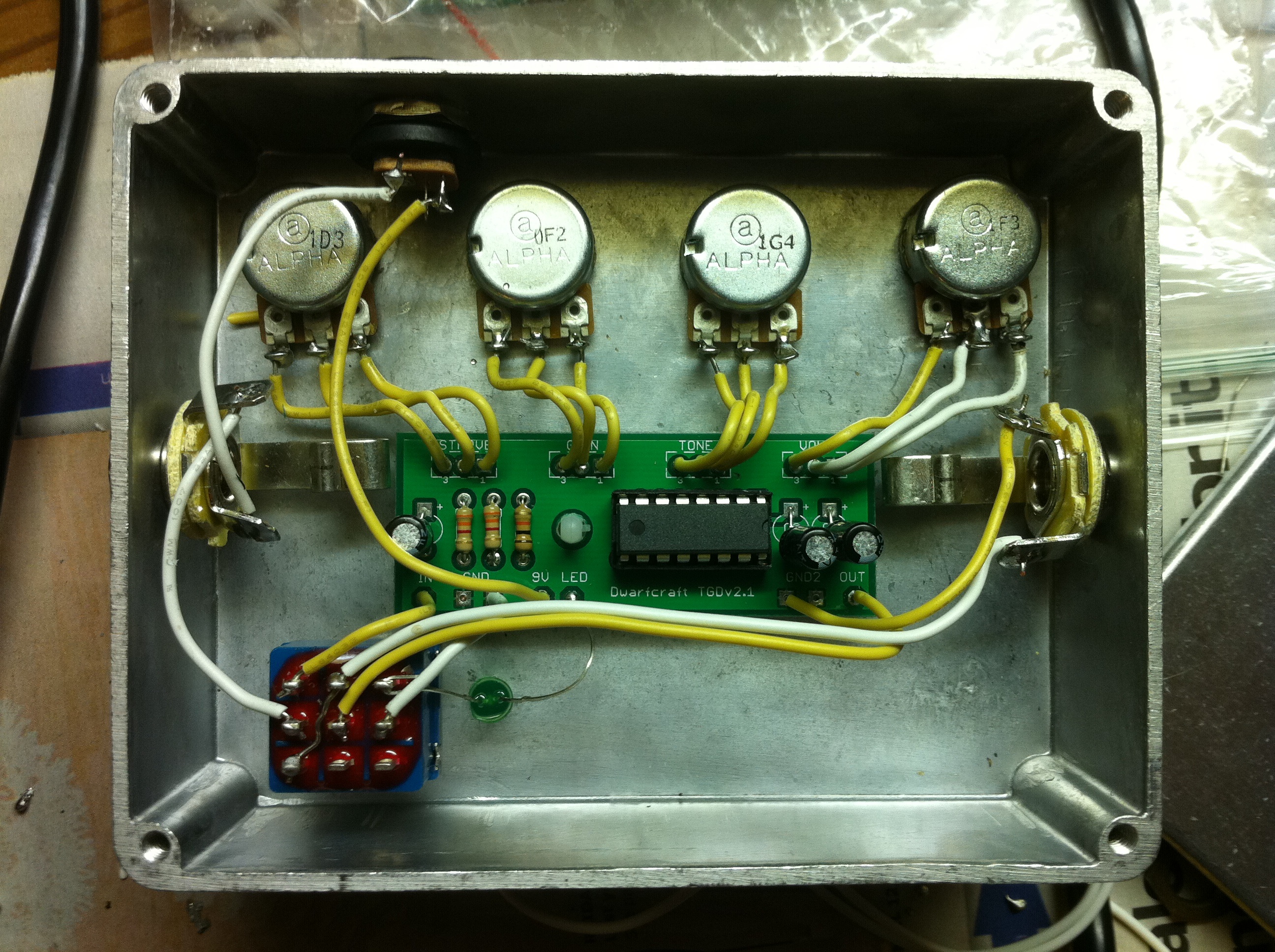

finally chucked a TGD.
reminds me how much i <3 board mounted pots!
Top
User avatar
fuzzmax
experienced
experienced
Posts: 917
Joined: Tue Apr 06, 2010 7:30 am
Location: Joliette, Quebec

Re: Let's see your finished DIY projects!

Post by fuzzmax »

nice wiring!!! i ordered one that will go inside a 125B enclosure
Top
justin
committed
committed
Posts: 110
Joined: Sat Oct 01, 2011 8:02 pm

Re: Let's see your finished DIY projects!

Post by justin »

fuzzmax wrote:nice wiring!!! i ordered one that will go inside a 125B enclosure

Nice, yeah there's a lot of spare room under the hood in this 1590bb... good excuse to squeeze in something else!
Top
Officer Bukowski
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3307
Joined: Wed Nov 17, 2010 9:13 pm

Re: Let's see your finished DIY projects!

Post by Officer Bukowski »

justin wrote:


finally chucked a TGD.
reminds me how much i <3 board mounted pots!

TGD r00lz.

Your guts look really nice! What does the outside look like?
I make pedals. SHARK TANK
Top
User avatar
yallerhon
experienced
experienced
Posts: 512
Joined: Fri Mar 02, 2012 9:30 pm
Location: Perth, Western Australia

Re: Let's see your finished DIY projects!

Post by yallerhon »

Chugs wrote:Will the knobs be sparkly too?


I ordered a few different types of replacement knobs of all shapes and sizes; It's surprisingly hard to find knobs suitable for knurled shafts..

I might take a few different pics when they arrive, see what people think. :)
Good deals with: PumpkinPieces, maz91379, allicio, nelsinian, tomlane95, casperh7, insubordination, bronzetalon
Top
justin
committed
committed
Posts: 110
Joined: Sat Oct 01, 2011 8:02 pm

Re: Let's see your finished DIY projects!

Post by justin »

Officer Bukowski wrote:TGD r00lz.

Your guts look really nice! What does the outside look like?


grey box, no knobs. was gonna powder coat but got impatient!!
Top
User avatar
nieh
IAMILF
IAMILF
Posts: 2689
Joined: Sun Nov 07, 2010 2:32 pm
Location: Wisconsin

Re: Let's see your finished DIY projects!

Post by nieh »

yallerhon wrote:I ordered a few different types of replacement knobs of all shapes and sizes; It's surprisingly hard to find knobs suitable for knurled shafts..


:lol:
Chankgeez wrote: (Don't worry, spouses come and go, ILF is forever.)
Top
User avatar
excane
LORDOFDARKNESS
LORDOFDARKNESS
Posts: 7497
Joined: Sun Oct 02, 2011 12:13 pm
Location: NYC
Contact:
Contact excane

Re: Let's see your finished DIY projects!

Post by excane »

yallerhon wrote: It's surprisingly hard to find knobs suitable for knurled shafts..


Top
User avatar
tuffteef
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 7890
Joined: Tue May 26, 2009 7:05 pm
Location: Downunderverse

Re: Let's see your finished DIY projects!

Post by tuffteef »


built these awhile back to take on a tour
lets say they kinda had issues on the road :lol:

but now there back in service again
good ol civil muff and tim plexxx
Top
User avatar
theavondon
Supporter
Supporter
Posts: 10742
Joined: Tue Mar 16, 2010 2:58 am
Location: Denton, TX

Re: Let's see your finished DIY projects!

Post by theavondon »

That's some hot stuff.
TAKE ME TO YOUR LEADER
Top
Officer Bukowski
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3307
Joined: Wed Nov 17, 2010 9:13 pm

Re: Let's see your finished DIY projects!

Post by Officer Bukowski »

MKII with 2N404 transistors modded for more volume and a bias control for Q3.
