Let's see your finished DIY projects!

[jfrey]

Are you selling these? I want one.

[Rygot]

Very, very modified DOD 440 made for someone here on the forum.

Knobs: Level, Range, Resonance, Attack Time, Volume.
Switches: Manual Sweep/Auto Sweep, Decay Time, Lower Sweep.
Extra jack: Disables treadle, adds in a box to control either the manual sweep or sweep starting point via photocell.
- Toggle on little box to switch between external photocell or internal photocell/pulsing LED combo.




No picture of the ext. box...its the same color, but a tiny box.

[greeny23]

thats some funky ass shit right there. however you need a second or third wire colour..

[Dr Tony Balls]

Re-adding some build pics..

386-style distortion (a la Sonic Titan, Peach Fuzz, etc)






MkII






Freq-variable Rangemaster






Super-Rat






FZ-1






Klon-style Clone

[Rygot]

thats some funky ass shit right there. however you need a second or third wire colour..

Any wire color other than Green or Purple is overrated.

Also, nice builds, balls.

[skullservant]

Been fooling around with the Bazz Fuss circuit all week and finally came up with something I enjoy. I call it the Gloom Drive. Huge output caps, tweaked resistor values, etc. More of a thick, dark overdrive than a full on fuzz. Incredibly loud.

First one is from an old enclosure I had laying around. I wanted to run this one off batteries. The LED shows if I need to turn off the battery or not.
No knob. Cranked all the time.



Second one is a more compact version, probably going to give this one away.



Lastly is the pretty one. It'll have a PTP Super Hard On to join it next week.

[sunmachine]

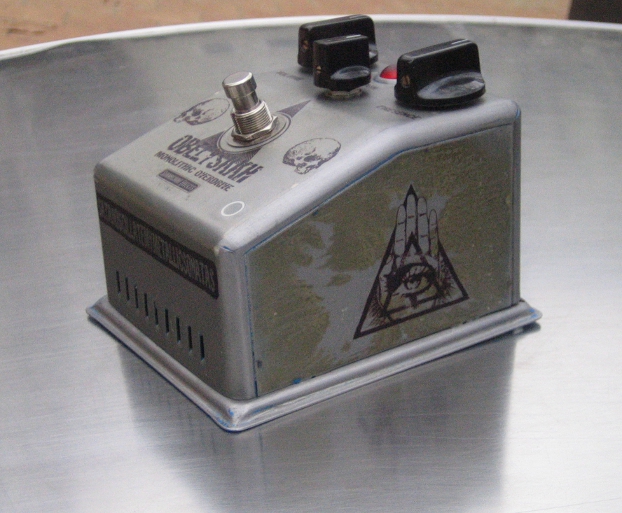

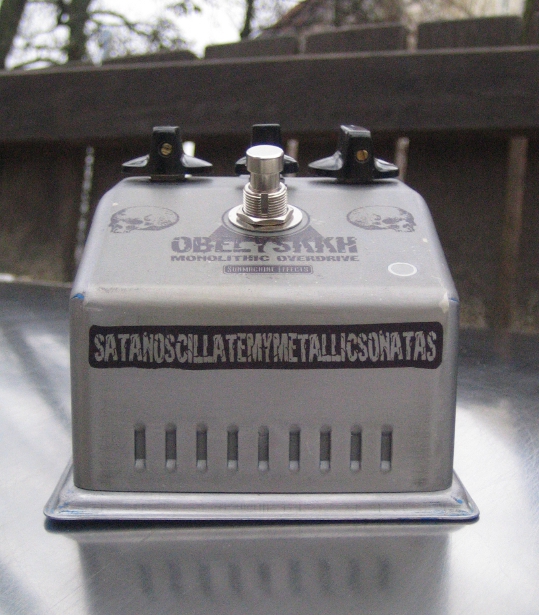

Et voila: dirty overdrive goodness - in honour of filthy Franconian grime masters Obelyskkh

[skullservant]

Neat enclosure!

[theavondon]

WHASSSSSSINIT?

[greeny23]

i taught myself to swirl.

[Boxbie]

This is my second build. My digital camera seems to take worse photos than my iphone -apologies.

Thanks for your help people, kudo to Lao for the etch advice!

[greeny23]

3in1

[enjoyadrian]

what is it?

[greeny23]

confidential.

[Jwar]

Shhhhhhhhhhhhhhhh...Don't tell Delta, but here's a pedal I etched for him. It didn't turn out 100% perfect, but still looks pretty fucking cool IMO. Special thanks for Danny over on TB. He help me a LOT with some info.
