drolo · Post by **drolo** » Wed Oct 04, 2017 2:02 pm

here's mine in the state it has been for 2 months...

(not that I am participating in the race)

the cutting job looks way messier than you guys's but I guess it will do.
hope I will find some time some day to work on it again

JonnyAngle · Post by **JonnyAngle** » Wed Oct 04, 2017 4:38 pm

spacelordmother wrote:I believe there are pads to power right at the spot the board can be split.

i checked the 5 pins where the boards meet and couldn't get continuity from the barrel jack

drolo · Post by **drolo** » Wed Oct 04, 2017 4:50 pm

this might help

JonnyAngle · Post by **JonnyAngle** » Wed Oct 04, 2017 5:40 pm

drolo wrote:

this might help

so the +5 should have continuity with the center of the barrel right? 10/10 will check again!

drolo · Post by **drolo** » Wed Oct 04, 2017 5:57 pm

no it doesn't I checked too and there is only ground that has continuity to the pads.
I assume the power is only connected to that pad when power is applied. It should be safe connecting power to that 5v pad. Either some active protection scheme or something to do with that VBUSEND pad, you might have a check the axo forums about that. I have seen people separating the boards there so it has probably been brought up.

Dr. Sherman Sticks M.D. · Wed Oct 04, 2017 6:12 pm

i'm gunna say that the power jack is not connected to the 5v pad because u are supposed to feed the power jack like 7-12 volts aren't you....?

so likely the power jack is connected to a 5v regulator or something..

drolo · Post by **drolo** » Wed Oct 04, 2017 6:21 pm

right! hadn't checked the data yet (its sparse ...). just assumed it was powered from 5v ... :picard:

spacelordmother · Post by **spacelordmother** » Wed Oct 04, 2017 7:00 pm

drolo wrote:here's mine in the state it has been for 2 months...
(not that I am participating in the race)

the cutting job looks way messier than you guys's but I guess it will do.
hope I will find some time some day to work on it again

Really looking forward to seeing/hearing what your brain comes up with. Also interested in knowing how Axo sounds through your (battery powered) thr10...

JonnyAngle · Post by **JonnyAngle** » Fri Oct 06, 2017 8:10 am

My enclosure will be in today. Probs won't get to work on it until next week but excite

JonnyAngle · Post by **JonnyAngle** » Wed Oct 11, 2017 12:59 am

Enclosure is done

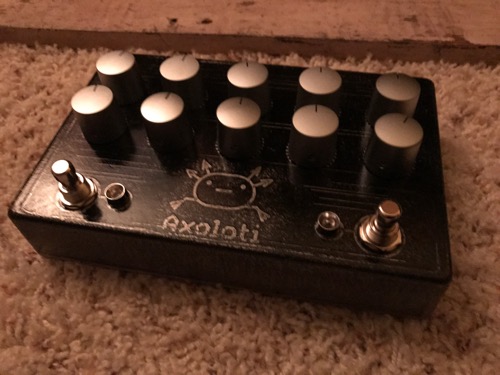

: IMG_4077.JPG (62.9 KiB) Viewed 2958 times

JonnyAngle · Post by **JonnyAngle** » Wed Oct 11, 2017 1:01 am

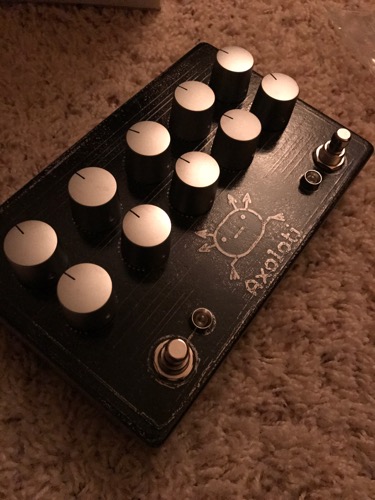

: IMG_4079.JPG (69.46 KiB) Viewed 2957 times

DRodriguez · Post by **DRodriguez** » Wed Oct 11, 2017 1:39 am

Well that is hot as shit.

The hell did you get those knobs?

drolo · Post by **drolo** » Wed Oct 11, 2017 4:08 am

DRodriguez wrote: The hell did you get those knobs?

etched tele knobs ?

odontophobia · Post by **odontophobia** » Wed Oct 11, 2017 10:09 am

Bitches love my switches, boys.

ibarakishi · Post by **ibarakishi** » Wed Oct 11, 2017 10:11 am

JonnyAngle wrote:
