Re: Let's see your finished DIY projects!

Postby fuzzonaut » Sat Dec 07, 2019 12:37 pm

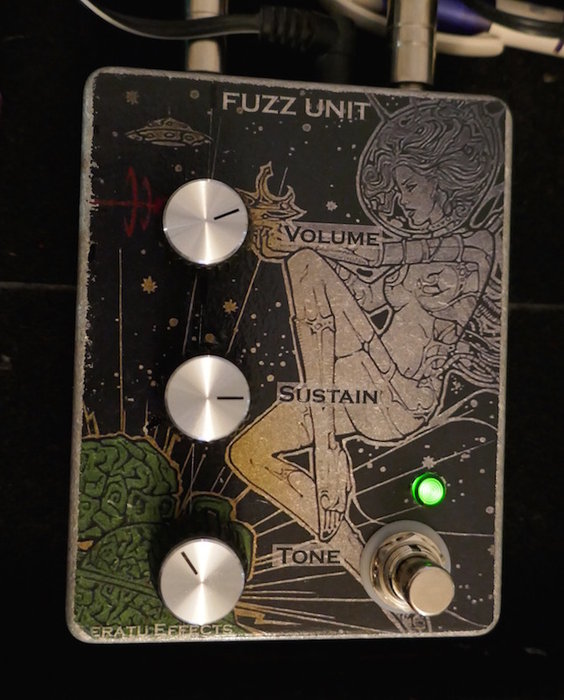

Here's the other old school thing, as I got 2 of those phenolic PCBs: Barnes and Mullins (B&M) Champion Fuzz Unit.

Again, I went with a standard enclosure, having 9V and a pilot light, while keeping the school vibe to the PCB.

Sounds glorious on bass, there seems to be some clean coming through, which I ike, and on top of that the tone knob can boost some serious low end.

no guts no glory


fancy space suit
Now: https://glimmbrand.bandcamp.com / http://www.deepband.ch / https://fuzzonaut1.bandcamp.com / https://soundcloud.com/fuzzonaut-1
Then: https://suiciderat.bandcamp.com / Short Films: https://vimeo.com/user28594850
Good deals: wfs1234, Gigahearts_FX, stanimal, greyscales, hatshirt, insubordination, xrleroyx, HolySchnikes, nevada, skullservant, earthbound, chuckjaywalk, D.o.S., antennafarm, skip, hbombgraphics, UC, jwar, nieh, laekna, Rygot, D-Rainger, behndy, jero
fuzzonaut

User avatar
experienced
experienced

Posts: 799
Joined: Sat Aug 10, 2013 10:56 am
Location: Switzerland

Re: Let's see your finished DIY projects!

Postby whoismarykelly » Wed Dec 11, 2019 11:31 pm

Life pedal clone with a custom control panel and styled closer to the Ace Fuzz Master with the controls on the back.

The Wind in the Trees - Heavy glitch-laden Baltimore noise
BSRI Audio on Instagram
whoismarykelly

User avatar
FAMOUS
FAMOUS

Posts: 1771
Joined: Sun Nov 28, 2010 1:25 pm

Re: Let's see your finished DIY projects!

Postby imJonWain » Fri Dec 13, 2019 10:40 am

that is hot. I love that style enclosure.
Like I said they say, nothing stops a party barge.
imJonWain

User avatar
FAMOUS
FAMOUS

Posts: 1384
Joined: Sun Apr 27, 2014 8:56 pm
Location: Boston Area

Re: Let's see your finished DIY projects!

Postby digi2t » Sat Dec 14, 2019 4:17 pm

whoismarykelly wrote:Life pedal clone with a custom control panel and styled closer to the Ace Fuzz Master with the controls on the back.



That's exactly what they mean when they say "Neatness counts". Very nice indeed.

Just out of curiosity, how do you like the PCB? I've read some grumbling that the switches and pots positioning/order wasn't intuitive.
"Turn down the amp, strum harder." - PRR

http://www.deadendfx.com/
digi2t

User avatar
experienced
experienced

Posts: 644
Joined: Sat Jun 09, 2012 7:07 am

Re: Let's see your finished DIY projects!

Postby whoismarykelly » Sun Dec 15, 2019 8:54 pm

digi2t wrote:
whoismarykelly wrote:Life pedal clone with a custom control panel and styled closer to the Ace Fuzz Master with the controls on the back.



That's exactly what they mean when they say "Neatness counts". Very nice indeed.

Just out of curiosity, how do you like the PCB? I've read some grumbling that the switches and pots positioning/order wasn't intuitive.


The intended layout is not aesthetically pleasing and its an unnecessarily large PCB for what’s on it. Dude makes a normal 125B size board that I would use if I wanted to make a couple more of these to use up the extra few faceplates I made. I think the octave switch throws things off because otherwise its basically two pedals in one and both switches are bypasses.
The Wind in the Trees - Heavy glitch-laden Baltimore noise
BSRI Audio on Instagram
whoismarykelly

User avatar
FAMOUS
FAMOUS

Posts: 1771
Joined: Sun Nov 28, 2010 1:25 pm

Re: Let's see your finished DIY projects!

Postby BetzFX » Sun Dec 22, 2019 5:25 pm

Hey guys,

This is my first post here...
I've recently gotten into building some guitar effects. Here is my Cup O' Meat Fuzz. It uses AC128 transistors, and it's schematic was based off of a fuzz factory, but with a rotary switch that chooses between 3 different modes: Octave down, bass boost, and a more standard fuzz sound.
1. Choose cup
2. Add juice
3. Add meat

If anyone is interested, Id be happy to share schematics!
Cheers
BetzFX

uncommitted
uncommitted

Posts: 1
Joined: Fri Dec 06, 2019 3:06 am

Re: Let's see your finished DIY projects!

Postby adamajah » Sun Dec 22, 2019 5:31 pm

BetzFX wrote:Hey guys,

This is my first post here...
I've recently gotten into building some guitar effects. Here is my Cup O' Meat Fuzz. It uses AC128 transistors, and it's schematic was based off of a fuzz factory, but with a rotary switch that chooses between 3 different modes: Octave down, bass boost, and a more standard fuzz sound.
1. Choose cup
2. Add juice
3. Add meat

If anyone is interested, Id be happy to share schematics!
Cheers


That's cool as shit :)*
adamajah

User avatar
experienced
experienced

Posts: 906
Joined: Wed Dec 14, 2016 10:35 pm

Re: Let's see your finished DIY projects!

Postby trubitsyn » Thu Dec 26, 2019 3:41 pm

Hi guys! I want to show you my first case for the future pedal, inside there will be a mini bomb board. If I wrote crookedly ask what exactly. I'm from Russia :joy:
Attachments
jhs mini bomb
trubitsyn

uncommitted
uncommitted

Posts: 1
Joined: Mon Dec 23, 2019 5:10 am

Re: Let's see your finished DIY projects!

Postby digi2t » Sat Dec 28, 2019 10:44 pm

Validation build of the DEFX Definitphase. This is a clone of the Prophecysound Infinitphase. Many thanks to Mike Both (again!) on this build, he fed me a ton of info. This is a fully loaded build, complete with;
- Sample/Hold
- Stereo output
- Footswitch LFO rate doubler
- Footswitch 4/8 stage select
- Expression pedal input jacks for Rate, Depth, and Range.
- Expression pedal input jack for Phase Center, which allows for direct phase control

The only major change we've made is to replace the quad set of red LED's for the LDR's, with a single 10mm green LED. We stole that page from the Spaceman phaser. Hence the name "Definitphase", 'cuz it'll be the last phaser you'll ever need. Needless to say, it sounds awesome. :!!!:






http://i.imgur.com/JvCB0mr.gifv
"Turn down the amp, strum harder." - PRR

http://www.deadendfx.com/
digi2t

User avatar
experienced
experienced

Posts: 644
Joined: Sat Jun 09, 2012 7:07 am

Re: Let's see your finished DIY projects!

Postby whoismarykelly » Sun Dec 29, 2019 10:31 pm

When are those board sets going to be available? I had a pair of Infinitphases back in the HCFX days and I wouldn't mind building one out for my board nowadays.
The Wind in the Trees - Heavy glitch-laden Baltimore noise
BSRI Audio on Instagram
whoismarykelly

User avatar
FAMOUS
FAMOUS

Posts: 1771
Joined: Sun Nov 28, 2010 1:25 pm

Re: Let's see your finished DIY projects!

Postby digi2t » Sun Dec 29, 2019 11:12 pm

whoismarykelly wrote:When are those board sets going to be available? I had a pair of Infinitphases back in the HCFX days and I wouldn't mind building one out for my board nowadays.


Probably about 3 weeks or so. We has some minor corrections and tweaks to make to the boards, so we're pressing a new set.
"Turn down the amp, strum harder." - PRR

http://www.deadendfx.com/
digi2t

User avatar
experienced
experienced

Posts: 644
Joined: Sat Jun 09, 2012 7:07 am

Re: Let's see your finished DIY projects!

Postby repoman » Mon Dec 30, 2019 11:41 am

fuzzonaut wrote:My first time doing something a bit old school: a Tonebender MKIV, on a phenolic PCB, classic layout, resistors, caps, yadda-yadda.

As I like the convenience of a 9V power supply and a pilot light, I used a foot switch PCB to get that.

Sounds really great, not a ton of volume on tap, but enough. I might still check out what jumpering that last resistor will bring.



It's "stock" regarding componenet values, I just wanted to own a pedal called DOOMBENDER .... :lol:



Super cool,
are those silk screened graphics?
F U T U R E G A M E R
repoman

User avatar
IAMILF
IAMILF

Posts: 2078
Joined: Sat Sep 26, 2015 3:16 pm
Location: Edge City

Re: Let's see your finished DIY projects!

Postby Paul_C » Mon Dec 30, 2019 4:42 pm

Today I have finished my last build of 2019, a very entertaining (in the brief time I've had with it) clone of a Noise Swash.

What I particularly like is that despite the pots and switches having fairly clearly defined roles, it's quite difficult to predict what effect turning one knob or flicking one switch will have on the overall sound.

Here's a pre-wiring interior and a finished outer shot.


Paul_C

User avatar
FAMOUS
FAMOUS

Posts: 1158
Joined: Thu Jun 11, 2015 1:45 pm
Location: Northampton UK

Re: Let's see your finished DIY projects!

Postby fuzzonaut » Tue Dec 31, 2019 12:04 pm

repoman wrote:
fuzzonaut wrote:My first time doing something a bit old school: a Tonebender MKIV, on a phenolic PCB, classic layout, resistors, caps, yadda-yadda.

As I like the convenience of a 9V power supply and a pilot light, I used a foot switch PCB to get that.

Sounds really great, not a ton of volume on tap, but enough. I might still check out what jumpering that last resistor will bring.



It's "stock" regarding componenet values, I just wanted to own a pedal called DOOMBENDER .... :lol:



Super cool,
are those silk screened graphics?

Thanks. And nah, that is printed on water decal paper and then some clear coat.
Now: https://glimmbrand.bandcamp.com / http://www.deepband.ch / https://fuzzonaut1.bandcamp.com / https://soundcloud.com/fuzzonaut-1
Then: https://suiciderat.bandcamp.com / Short Films: https://vimeo.com/user28594850
Good deals: wfs1234, Gigahearts_FX, stanimal, greyscales, hatshirt, insubordination, xrleroyx, HolySchnikes, nevada, skullservant, earthbound, chuckjaywalk, D.o.S., antennafarm, skip, hbombgraphics, UC, jwar, nieh, laekna, Rygot, D-Rainger, behndy, jero
fuzzonaut

User avatar
experienced
experienced

Posts: 799
Joined: Sat Aug 10, 2013 10:56 am
Location: Switzerland

Re: Let's see your finished DIY projects!

Postby chromandre » Tue Dec 31, 2019 2:26 pm

digi2t wrote:definitphase.jpg

holy moly that looks like a lot of fun, really nice looking internals too! love that swarm around a giant LED

Paul_C wrote:Noise Swash.jpg

that rocks! very clean, I might do a noise swash or atoner one of these days.
chromandre

User avatar
committed
committed

Posts: 145
Joined: Fri Sep 14, 2018 9:14 pm
