Holmes H-X6 Spectrum

[digi2t]

Bit of a hen's tooth, thanks to strategy over at diysb for sending me this.

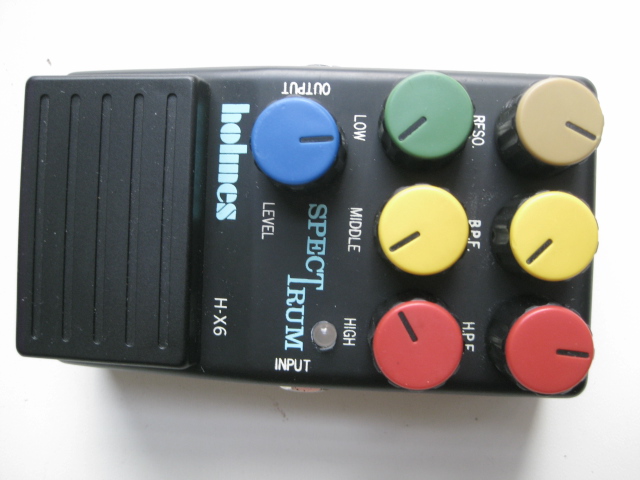

This pedal is really cool. Like strat says, a three band eq, with BP and HP filtering. It has a sort of MS-20 filter edge to it, like the Resonator, but with much less complexity.

I traced it out, with my super-duper-pooper schematic skills (not), here it is;



Here's the trace side reversed, with the components drawn in, in case anybody wishes to double check it.



If anyone wishes to clean up the schematic, by all means...

I'm going to vero this, maybe stick it into a Crybaby shell, just controlling the BP, which can really rock the tone on it's own. All in all, it's one of those circuits that acts like a subtle seasoning on a nice juicy steak. I mean, the steak is great on it's own, but the seasoning adds that little extra zing to push it to the next level. Tone seasoning. Yeah... that's it!

Many thanks to Strategy for lending me this pedal for tracing. Another feather for the Hen's Tooth Cafe. I'll try to get a HTC video out soon.
